Product Description

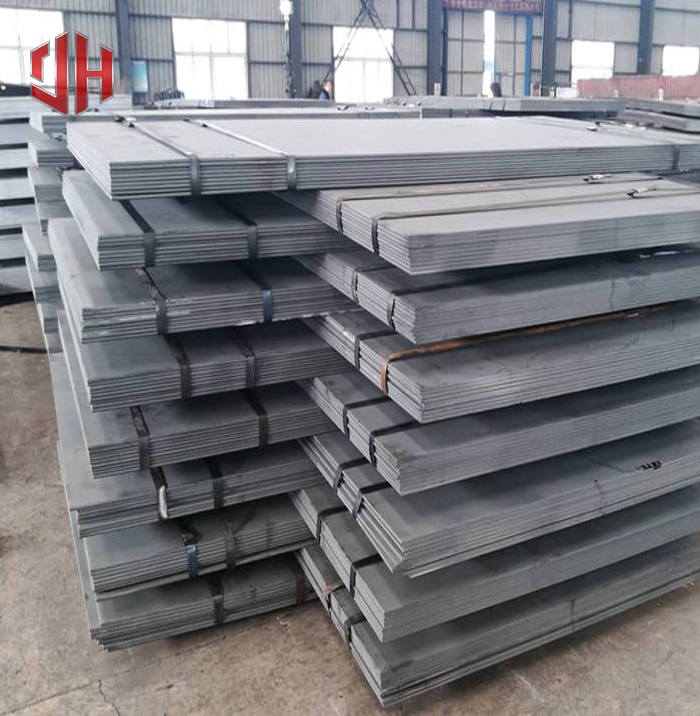

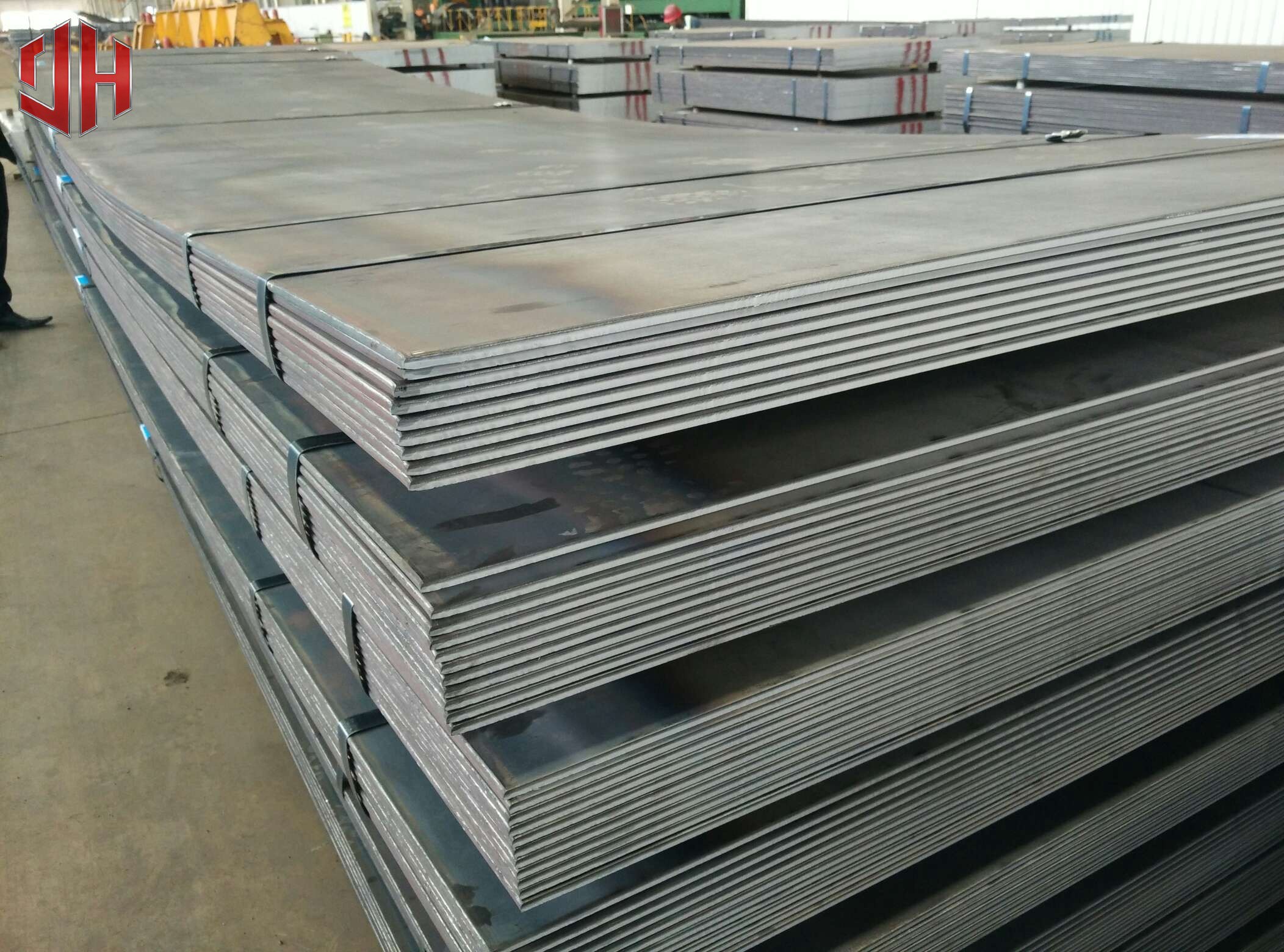

SA516Gr70 Pressure Vessel Steel Plate Description

ASME SA516 standard specification for pressure vessel plates, carbon steel for moderate and lower- temperature service.
ASME SA516 plates 40mm and under in thickness is normally supplied in the as-rolled condition. The plates may be ordered normalized or stress relieved, or both. ASME SA516 grade plates over 40mm in thickness shall be normalized.


Product Parameters

Product Name

sa516gr70 Pressure Vessel Steel Plate

Production Process

Hot RollingCold Rolling

Material Standards

AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.

Width

100mm-3000mm

Length

1m-12m, or Customized Size

Thickness

0.1mm-400mm

Delivery Conditions

Rolling, Annealing, Quenching, Tempered or Standard

Surface Process

OrdinaryWire DrawingLaminated Film



Chemical Composition

SA516 Grade 70 Chemical Composition

Grade SA516 grade 70

The Element Max(%)



C

Si

Mn

P

S

Thick<12.5mm

0.27

0.13-0.45

0.79-1.30

0.035

0.035

Thick12.5-50mm

0.28

0.13-0.45

0.79-1.30

0.035

0.035

Thick50-100mm

0.30

0.13-0.45

0.79-1.30

0.035

0.035

Thick100-200mm

0.31

0.13-0.45

0.79-1.30

0.035

0.035

Thick-200mm

0.31

0.13-0.45

0.79-1.30

0.035

0.035



Mechanical Properties

Grade

SA516 Grade 70 Mechanical Property



Thickness

Yield

Tensile

Elongation

SA516 Grade 70

mm

Min Mpa

Mpa

Min %



6-50

260

485-620

21%



50-200

260

485-620

17%

Physical Performance

Physical Performance

Metric

Imperial

Density

7.80 g/cc

0.282 lb/in&sup3;



Scope of Application

ASTM A202 boiler vessel plate is widely used in oil and gas engineering projects, for the manufacture of pressure vessels, boilers, storage tanks and heat exchangers and other equipment.
