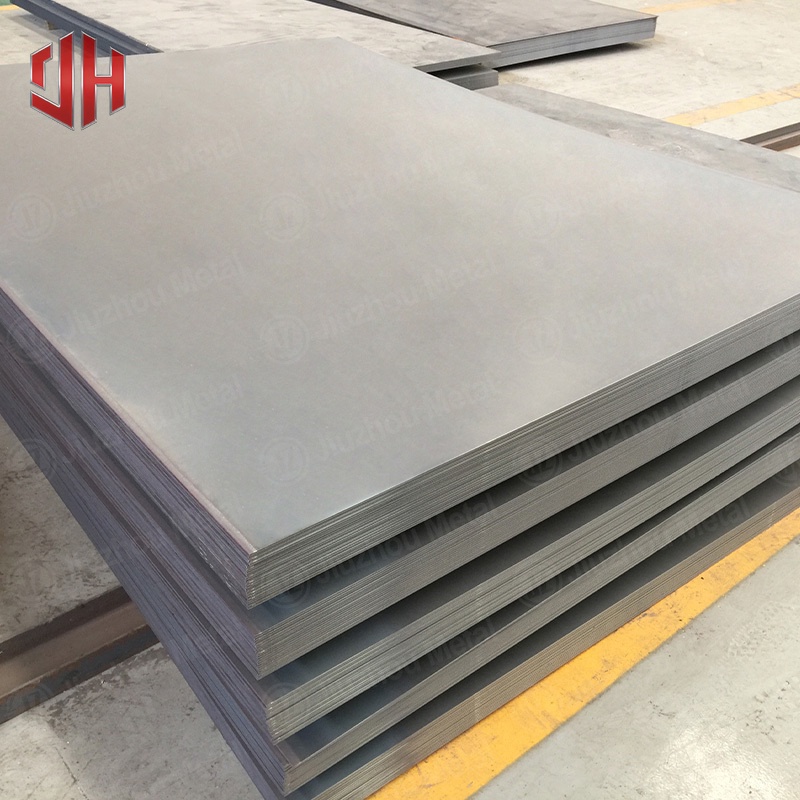

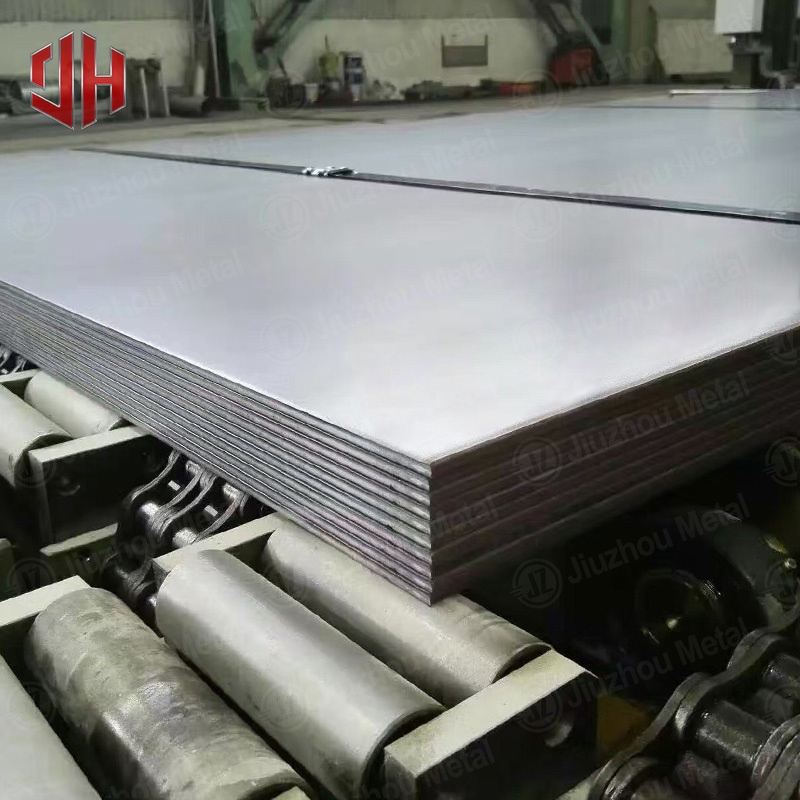

Manganese Steel Plate

Manganese Steel Plate
Manganese Plate is the ideal solution for cases where severe wear is combined with shocks or high pressure capable of work-hardened its austenitic structure. Used in jaws of crushers, hammers or pulverizers, cutting edges of large excavators, liners of shotblasting units, cores and wall of parpen moulds, and screens.
WhatsApp:+86 13863536040
Email:jiuhe@sdhltg.com
Contact Us →

Product Description

Manganese Steel Plate Description

Manganese steel, also called Hadfield steel or mangalloy, is a steel alloy containing 12-14% manganese. Renowned for its high impact strength and resistance to abrasion in its hardened state, the steel is often described as the ultimate work hardening steel.


Product Parameters

Product Name

Manganese Steel Plate

Production Process

Hot Rolling, Cold Rolling

Material Standards

AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.

Width

100mm-3000mm

Length

1m-12m, or Customized Size

Thickness

0.1mm-400mm

Delivery Conditions

Rolling, Annealing, Quenching, Tempered or Standard

Surface Process

Ordinary, Wire Drawing, Laminated Film



Chemical Composition

Jiuzhou Metal is an austenitic, non-magnetic steel produced to A128 specifications.
Carbon 1.05 - 1.2
Manganese 11.5 - 14
Silicon 1.00 Max
Phosphorus 0.07 Max



Mechanical Properties

Tensile Strength 125 ksi
Yield Strength 52 ksi
Elongation in 2” 45 %



Scope of Application

Because of its self hardening properties, manganese steel has been used in the mining industry for many years – cement mixers, rock crushers, crawler treads for tractors, elevator and shovel buckets – as well as in the rail industry (switches and crossings) and other high impact environments.

Product Application

  • 1775551249900060937244790784
  • 1724983128687962864209162240
  • 1724983125687962850678337536
  • 1724983121687962836648390656
  • 1700360854_huge
  • a79728cbbd8040cb9dcee1b7a5e8e557

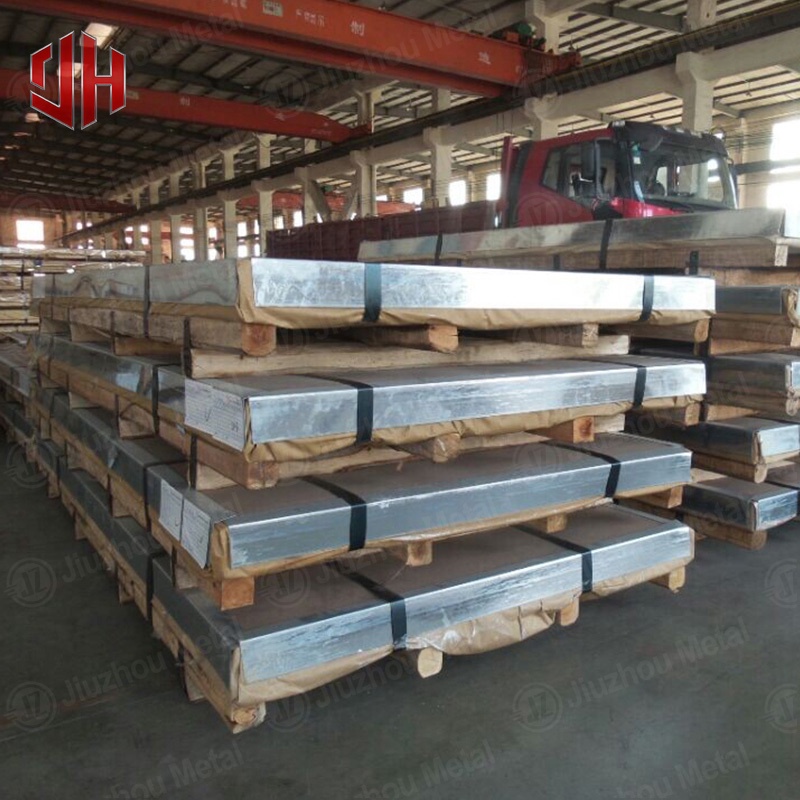

Packaging and shipping

  • 1
  • 2
  • 3
  • 4
  • 5
  • 9

Factory Display

  • a635e6aa8af749b3b20947091f812fdd
  • 011177a38e499b8b50e0993f29e85558
  • 60a465fb6d089d1e3a0c90958431d3c3
  • 未标题-2
  • 摄图网_600975422_钢铁仓库(非企业商用)-(1)
  • vecteezy_modern-industrial-steel-manufacturing-facility-with-advanced_49740735
  • 0b42940c953e9e845fc286c7d6151ed6
  • a8c2ec4a3945a90482a70e6aabff013f
  • 418cd469d6a99619474e86e46048a5c9
  • bf4177c383f74c00f80e0bca1aae52a7
  • 工厂车间 (4)
  • 5
  • 4ba06389467ca90624596b987abe434be8635cba188343-TdLEpR 拷贝
  • 645f88ceb28016b71deb44d0eca6ae91346ff4f633046-YV9trp
  • 76e854f676be41a74b86935d2042824d

FAQ

Q1: What products does Jiuhe Steel mainly offer?
Jiuhe Steel specializes in carbon steel, stainless steel, copper, aluminum, color-coated and galvanized products. Our portfolio includes carbon steel coils/plates/pipes/sections, stainless steel coils/pipes/bars, copper plates/strips/pipes, aluminum plates/coils/profiles, pre-painted galvanized coils/roofing sheets, and galvanized coils/pipes/sections.


Q2: What standards do your products comply with?
We can supply products in accordance with various international standards, including GB/T (Chinese standard), ASTM (American standard), JIS (Japanese standard), EN (European standard), and others. We recommend that clients specify their required standards and grades, and we will arrange production accordingly. If you are unsure about the appropriate standard, our team can assist with standard comparison and material selection.


Q3: Do you offer customized products?
Yes. We provide customized steel and non-ferrous metal solutions based on specific project requirements, including special dimensions, materials, surface treatments, and more. Please send us your technical specifications or drawings, and we will offer professional advice and quotations.



Q4: How do you ensure product quality?
We maintain long-term partnerships with reputable domestic mills and processing plants, with strict quality control systems in place. All products are accompanied by quality inspection certificates issued by the manufacturer. Upon request, we can also arrange third-party inspection by agencies such as SGS or BV.


Q5: Do you provide Mill Test Certificates (MTC)?
Yes. We provide Mill Test Certificates (MTC) for each shipment, including product name, specifications, applicable standards, chemical composition, mechanical properties, test results, date of manufacture, and the manufacturer‘s official stamp.
