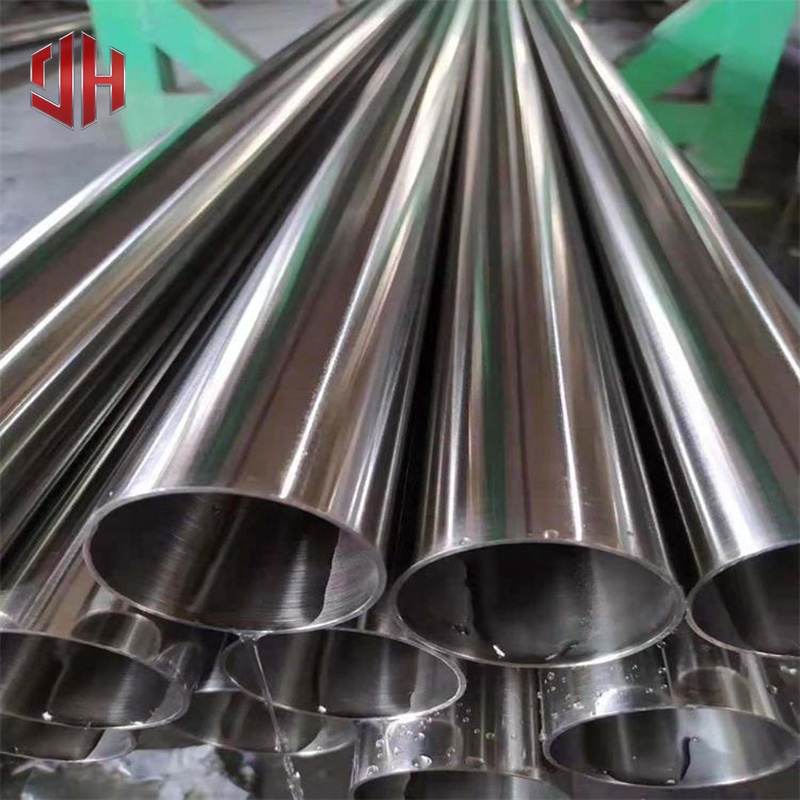

316 Stainless Steel Pipe

316 Stainless Steel Pipe
316 stainless steel contains 2-3% molybdenum, aside from iron, chromium and nickel. The addition of molybdenum significantly improves the performance of 316 stainless steel in certain corrosive environments, especially those containing chlorides. 316 stainless steel is more commonly used when higher corrosion resistance is needed.
WhatsApp:+86 13863536040
Email:jiuhe@sdhltg.com
Contact Us →

Product Description

316 Stainless Steel Pipe Description

316 stainless steel pipe is recognized in the stainless industry for a number of key reasons. Grade 316 is the standard molybdenum-bearing austenitic grade, which is strongly invulnerable to pitting and crevice corrosion in chloride environments. So 316 stainless steel is commonly adopted in situations where higher corrosion resistance is required. For example, 316 stainless steel is often used to manufacture ship parts, subsea pipelines, offshore platforms and other facilities. In the chemical industry, it is also commonly used to produce equipment such as storage tanks, reactors and pipelines. In addition, 316 stainless steel is also widely used to manufacture medical devices and implants due to its excellent biocompatibility and corrosion resistance.


Product Parameters

Product Name

316 Stainless Steel Pipe

Type

Steel Pipe

Outer diameter

Round Tube

4mm-200mm

Square Tube

10*10mm-100*100mm

Rectangular Tube

10*20mm-50*100mm

Wall Thickness

0.6mm-6.0mm

Length

1-6 meters, Length can be customized

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.

Scope of Application

Common applications for stainless steel pipes include food processing,

Textile operations, Breweries, Water treatment plants, Oil and gas processing,

Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc.

Certificate

ISO, SGS, BV, etc.

Production Technology

Hot Rolling, Cold Rolling

Edge Processing

Edging, Trimming



Chemical Composition

C

Si

Mn

Cr

Ni

S

P

Mo

≤ 0.03

≤ 0.75

≤ 2.0

16.0~18.0

10.0~14.0

≤ 0.03

≤ 0.045

2.0~3.0



Mechanical Properties

Tensile Strength Kb (MPa)

Yield Strength σ0.2 (MPa)

Elongation D5 (%)

Hardness

≥480

≥177

≥ 40

≤ 187HB;≤ 90HRB;≤ 200HV



Physical Performance

Density(g/cm³)

Modulus of Elasticity(Gpa)

Coefficient of Thermal Expansion(10-6/°C)

Coefficient of Thermal Conductivity(W/m*K)

Resistivity(ΜΩ. cm)

7.99

193

16.0

16.2

74

Product Application

  • 1775551249900060937244790784
  • 1724983128687962864209162240
  • 1724983125687962850678337536
  • 1724983121687962836648390656
  • 1700360854_huge
  • a79728cbbd8040cb9dcee1b7a5e8e557

Packaging and shipping

  • 1
  • 2
  • 3
  • 4
  • 5
  • 9

Factory Display

  • a635e6aa8af749b3b20947091f812fdd
  • 011177a38e499b8b50e0993f29e85558
  • 60a465fb6d089d1e3a0c90958431d3c3
  • 未标题-2
  • 摄图网_600975422_钢铁仓库(非企业商用)-(1)
  • vecteezy_modern-industrial-steel-manufacturing-facility-with-advanced_49740735
  • 0b42940c953e9e845fc286c7d6151ed6
  • a8c2ec4a3945a90482a70e6aabff013f
  • 418cd469d6a99619474e86e46048a5c9
  • bf4177c383f74c00f80e0bca1aae52a7
  • 工厂车间 (4)
  • 5
  • 4ba06389467ca90624596b987abe434be8635cba188343-TdLEpR 拷贝
  • 645f88ceb28016b71deb44d0eca6ae91346ff4f633046-YV9trp
  • 76e854f676be41a74b86935d2042824d

FAQ

Q1: What products does Jiuhe Steel mainly offer?
Jiuhe Steel specializes in carbon steel, stainless steel, copper, aluminum, color-coated and galvanized products. Our portfolio includes carbon steel coils/plates/pipes/sections, stainless steel coils/pipes/bars, copper plates/strips/pipes, aluminum plates/coils/profiles, pre-painted galvanized coils/roofing sheets, and galvanized coils/pipes/sections.


Q2: What standards do your products comply with?
We can supply products in accordance with various international standards, including GB/T (Chinese standard), ASTM (American standard), JIS (Japanese standard), EN (European standard), and others. We recommend that clients specify their required standards and grades, and we will arrange production accordingly. If you are unsure about the appropriate standard, our team can assist with standard comparison and material selection.


Q3: Do you offer customized products?
Yes. We provide customized steel and non-ferrous metal solutions based on specific project requirements, including special dimensions, materials, surface treatments, and more. Please send us your technical specifications or drawings, and we will offer professional advice and quotations.



Q4: How do you ensure product quality?
We maintain long-term partnerships with reputable domestic mills and processing plants, with strict quality control systems in place. All products are accompanied by quality inspection certificates issued by the manufacturer. Upon request, we can also arrange third-party inspection by agencies such as SGS or BV.


Q5: Do you provide Mill Test Certificates (MTC)?
Yes. We provide Mill Test Certificates (MTC) for each shipment, including product name, specifications, applicable standards, chemical composition, mechanical properties, test results, date of manufacture, and the manufacturer‘s official stamp.
